Available in yellow and red. Colors will be shipped randomly based on stock availability.
Couldn't load pickup availability

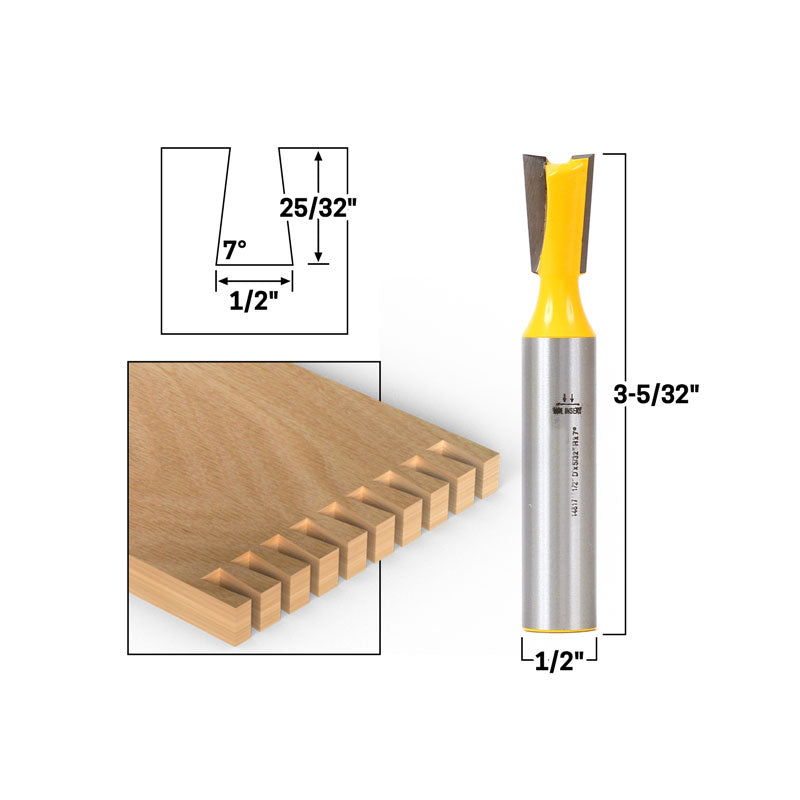

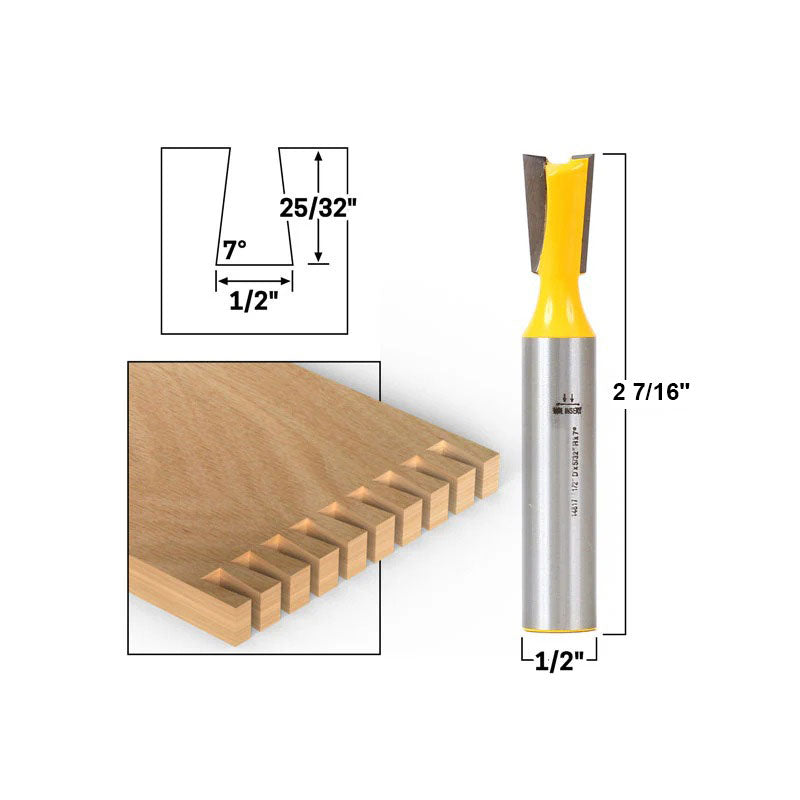

This dovetail bit has a cutting diameter of 1/2", with an angle of 7° and a cutting height of 25/32". The shank is 1/2" in diameter.
The dovetail is probably the most recognizable of all woodworking joints. A dovetail joint is self-aligning and interlocking. There are numerous versions of the dovetail joint, including half blind dovetails, through dovetails, mitered dovetails and sliding dovetails. All of these variations are common in casework and drawer construction. A single dovetail bit can make almost any kind of dovetail, depending on the desired size. You'll need a jig to make most dovetail joints, as well as a guide bushing for your router. Check the instructions with your dovetail jig to select a bit with the appropriate angle, which will usually be somewhere between 7 and 14 degrees.
Bit Specs Material:Carbide Overall Length:3-5/32" Number of Flutes:2 Number of Bits:1 Shank Size:1/2" Cutting Diameter:1/2" Cutting Length:25/32"
Worked great to make a groove for a cabinet back on a cherry cabinet. Cut the groove cleaner and easier than a standard straight bit. Multiple cuts along with a close-fitting fence were used to prevent tear out. Using a light scoring cut for the first pass worked great.
P
Phil
I built a 2'x16' table top using biscuits so it worked great for my projrct.
t
therese fortier
Very practical, thank you very much.
q
qwdfe
It works in my dovetail jig. It easily slices through hardwood like maple and white ash.
