Straight with flange Jig Groove 1/4" Shank Router Bit

Clamps and hold downs could not be easier that with the Dovetail clamp system. These bits create the grooves in your table top surface enabling you to slide dovetail clamps into the grooves. This method allows for great versatility where you can cut the grooves in any direction and position your clamp virtually anywhere on the table work area. This can be very benficial for odd shaped clamping projects like guitar, violin and many more unique shaped glue up jobs. The bits are available in straight and dovetail designs where the straight bit is used to precut the grooves and reduce the workload for the subsequent dovetail bit. Available in both 1/4" and 1/2" shanks.

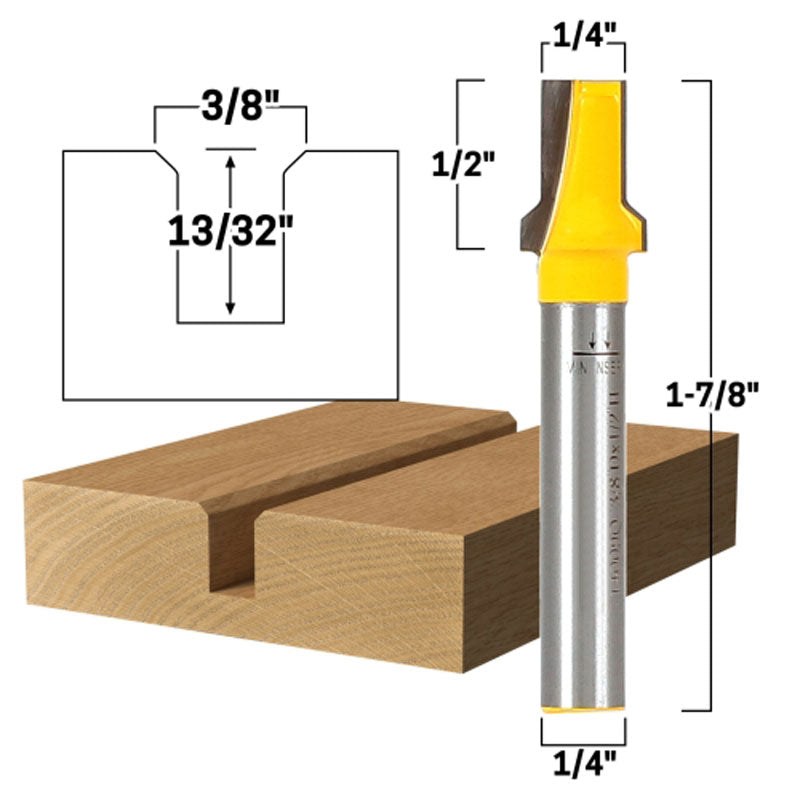

The Straight - Dovetail Clamp Router Bit is a specialized tool meant to work in conjunction with the dovetail clamp router bit. Its purpose is to establish a initial path and reduce the workload for the dovetail bit, which ultimately completes the final cut. This setup ensures a smoother and more precise dovetail slot. 1/4" Cutting Diameter X 13/32" Cutting Height. 2 flute carbide cutters and 1/4" Shank.

Bit Specs
Material:Carbide Tipped
Overall Length:1-7/8"
Largest Diameter:3/8"
Number of Flutes:2
Number of Bits:1
Shank Size:1/4"
Cutting Diameter:3/8"
Cutting Length:1/2"
