Raised Panel with Back cutter Bevel 2 3/4" Diameter Router Bit

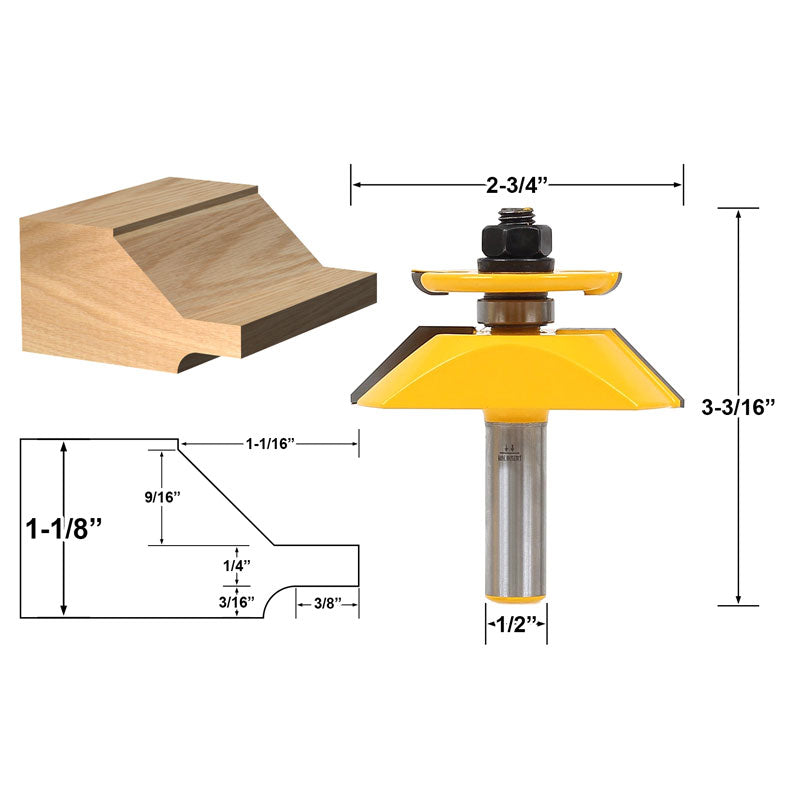

The Bevel Panel Raiser Router Bit with Back cutter will cut bevel raised panels easily while reducing the tongue thickness to 1/4". Use with 5/8"-1" stock. Two flute carbide cutters and 1/2" shank. Back cutter - 1-3/4" Diameter x 3/16" Cutter Height
Front Cutter - 2-3/4" Diameter x 9/16" Cutter Height

This bevel panel raiser has a cutting depth of 1-1/8" and can be used on stock up to 1-1/8" thick. The back cutter cuts 3/8" deep plus a 3/16" radius relief. The tongue will be 1/4" thick and can be inserted into a door frame with a slot of up to 3/8" deep. This is a heavy duty bit with a 1/2" shank.

Bit Specs
Material:Carbide Tipped
Number of Bits:1
Overall Length:3-3/16"
Largest Diameter:2-3/4"
Number of Flutes:2
Shank Size:1/2"
Cutting Length:1-1/8"
Cutting Depth:1-1/16"
