Pattern/Flush Trim Router Bit 2 1/2" Cutter Top & Bottom Bearing

$30.00 AUD

Sale Sold out

Shipping calculated at checkout.

Available in yellow and red. Colors will be shipped randomly based on stock availability.

Quantity

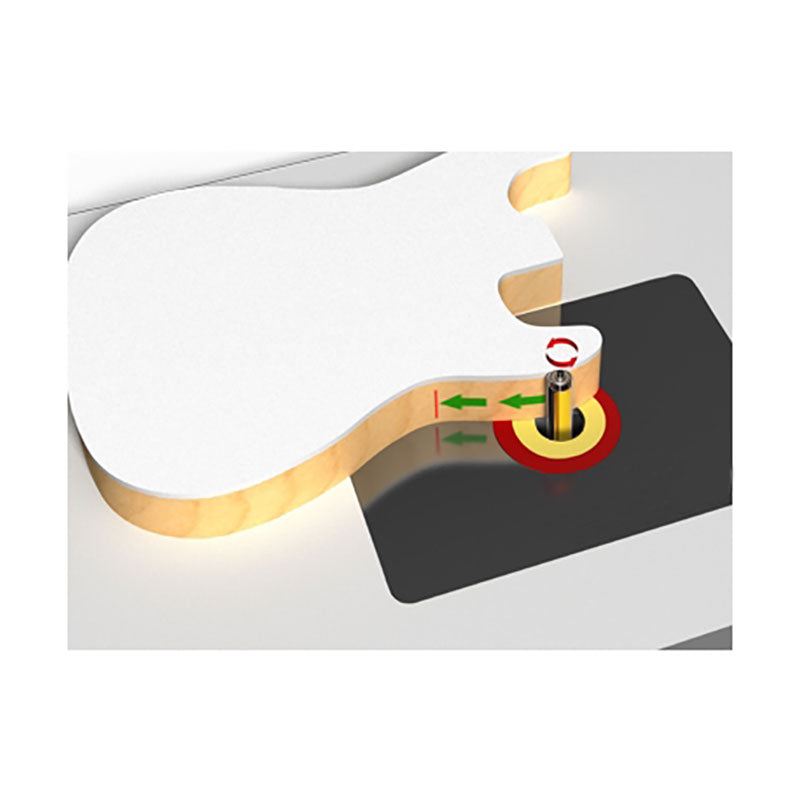

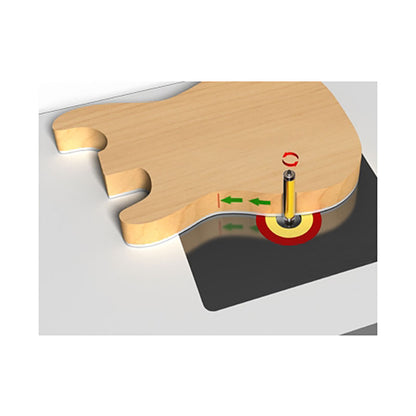

The flush trim router bit contain a 1/2" diameter shank and 3/4" inch dia. bearings. Top and Bottom Bearing Router Bit is great for all your large stock trim applications. This trimmer router bit can be used with either a top or bottom template. Especially useful for template work when routing rounded or curvy wood with sensitive end-grains. The top and bottom bearings allow you to flip over the wood stock when you reach "up-grain" and rout that segment in a "down-grain" direction, maintaining uniform smoothness around the work-piece.All of our router Bits are Carbide Tipped or Solid Carbide!

Features
Industrial Quality
C3 Tungsten Carbide Cutters
Anti-Kickback Design
Solid Hardened Steel Body
Satisfaction Guaranteed
Build-Up Resistant Coating

Bit Specs
Material:Carbide Tipped
Number of Bits:1
Shank Size:1/2"
Cutting Length:2-1/2"
Overall Length:4-7/8"
Cutting Diameter:3/4"
Number of Flutes:2
Largest Diameter:3/4"

View full details

I started using a router for some basic projects earlier last year. I bought this set of bits expecting they probably wouldn't be the best or longest-lasting, but it had the sizes and styles I needed and at a great price. I've been really impressed with them and have used half of them so far! Given that these have 1/4" shanks, I'm making sure to do two passes for anything deeper than 1/4". It takes longer but the cuts are cleaner and it all but eliminates the risk of the bit bending or breaking.

A few different straight bits have powered through about a hundred feet of various kinds of lumber in my router table and are still sharp. The cove box bits I use in my plunge router and they're working great. I'm still trying to perfect the spacing and height for the angle of the corner round, cove, and ogees, but that's on me and not the bit. I'm not sure if I'll use the rest, but I like having them in case I find a need for them. They're all making nice clean cuts.

If you only need the cove box and/or V bits, I started with a set of "Eyech" bits in my plunge router and would recommend them as well

I'm attaching pictures of a couple of my first projects, tile holders for dominos and other games. The corner round bit is mounted to the table in the back of a couple of them. If you notice the circular divots towards the end of some of the smaller pieces, those are the fault of my poorly-designed (but budget-friendly) Kobalt router table, not the bits. Some genius designed the inserts for that table to be a few millimeters thinner than they should be, leaving a nice edge sticking up to catch smaller pieces. One of these days I'll layer on a few coats of paint or something to get them flush with the table.

worked as advertised.

Needed to make some 3/4" dados in an area where I couldn't do it with my saw... used my router made perfect cuts. Again, This product always excellent!

Not the best router bits you can buy but fur the money they're great! I expect them to last awhile. I'll update this review if they don't.

I have only used one of the bits, but it performed well. It even got bound up due to an operator error and did not break. Impressive since this was one of the 1/16th in bits. Would recommend. Contacted the mfg with a question and fast response. Recommend.
