Panel Raiser Vertical Bevel Design 1/4" Shank Router Bit

Create bevel raised panels for cabinet doors vertically with the vertical panel raiser router bit. Two flute carbide cutters & 1/4" shank. Manufactured from C3 micro grain carbide, raised panel router bits create smooth, detailed cuts resulting in professional door panels.

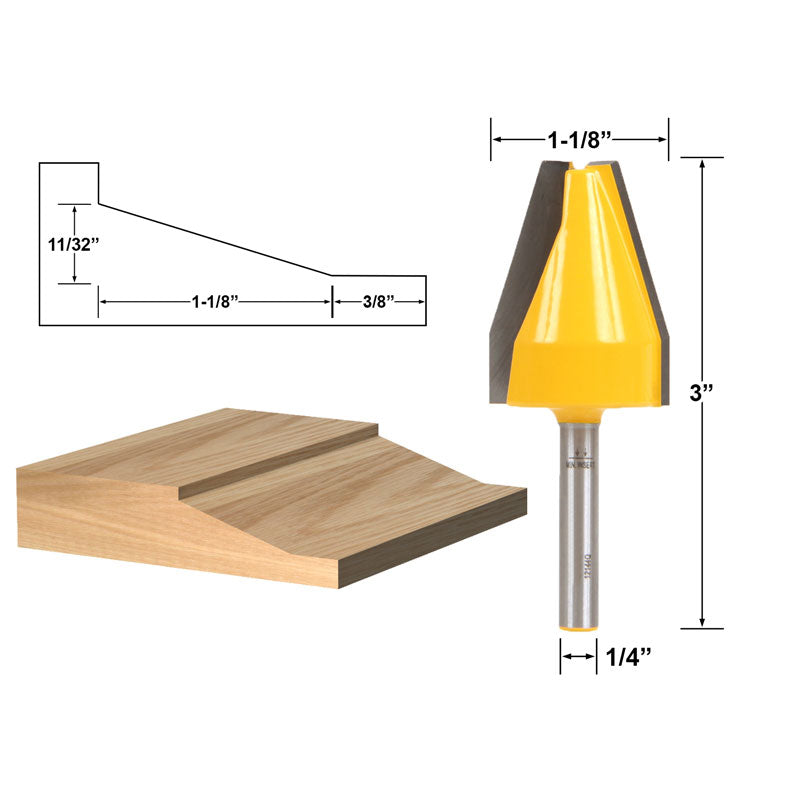

This bevel vertical panel raiser has a 1-1/2" cutting height including a 3/8" fillet and a 1-1/8" large diameter. The shank is 1/4" in diameter. Take care not to push this bit too hard, make multiple passes and insert the shank at least 80% into the collet.

Bit Specs
Material:Carbide Tipped
Cutting Length:1-1/2"
Cutting Depth:5/16"
Degrees:17°
Number of Flutes:2
Overall Length:3"
Largest Diameter:1-1/8"
Number of Bits:1
Shank Size:1/4"
