Low Helix Down Cut 1/8" X 1/2" X 1/4" X 2" CNC Router Bit

$24.00 AUD

Sale Sold out

Shipping calculated at checkout.

Available in yellow and red. Colors will be shipped randomly based on stock availability.

Quantity

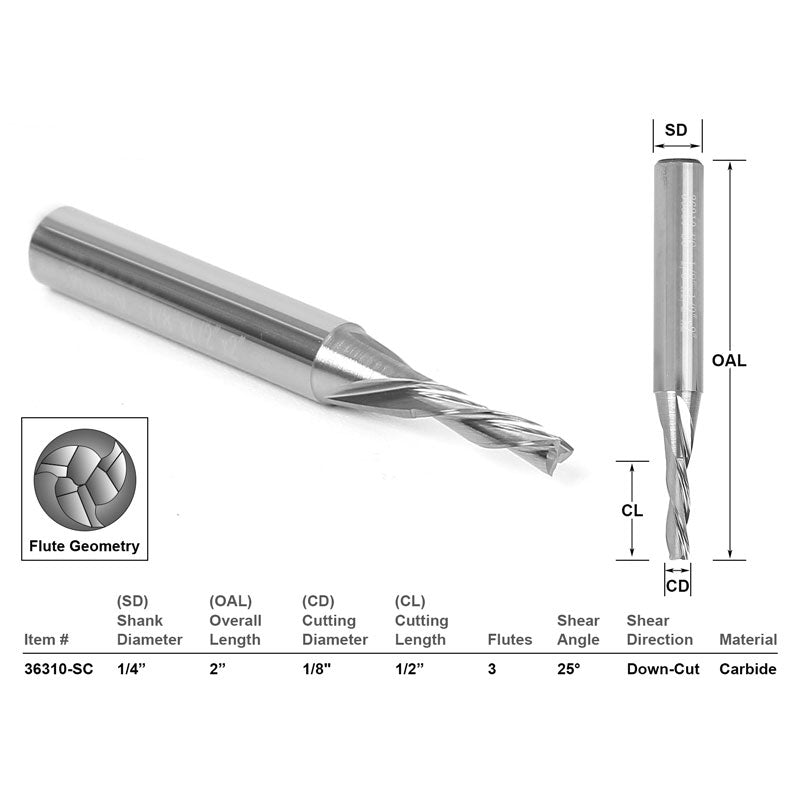

Bit Specs
Material:Solid Carbide
Number of Bits:1
Overall Length:2"
Number of Flutes:3
Flute Angle:2°
End Mill Type:Low Helix Downcut
Shank Size:1/4"
Cut Direction:Downcut Low Helix
Cutting Diameter:1/8"
Cutting Length:1/2"

Best for achieving smooth finish on hard plastics.
Cutting Diameter: 1/8"
Cutting Height: 1/2"
Shank Diameter: 1/4"
Overall Length: 2"
Flutes: 3 Low Helix bits perform a more lateral movement with less lift resulting in a smoother finish. These bits are a better choice for hard plastics such as acrylic and phenolic. Down cut endmills shear in a downward direction causing the uppermost layer of the material to be pressed down against the material just below it. This motion leaves a perfectly clean top surface edge. A concentration of wood chips in the work path will occur. Hose away excess wood chips to prevent bit breakage.
Pros: Produces smooth finishes on hard plastics.
Cons: Low helix bits require a slower feed rate than "high helix" router bits. For use in CNC milling and carving machines.

View full details

I have a 1/8" router bit, but the cutting surface is only about 1/2 inch long so this is a great replacement which will allow me to do much deeper cuts when necessary. My other bit just barely does the job so I was needing it replace it and this is just the thing I needed. Seems to be of good quality and reasonable price, considering what others sell for.
