Dovetail Jig Groove 1/4" Shank Router Bit

Clamps and hold downs could not be easier that with the Dovetail clamp system. These bits create the grooves in your table top surface enabling you to slide dovetail clamps into the grooves. This method allows for great versatility where you can cut the grooves in any direction and position your clamp virtually anywhere on the table work area. This can be very benficial for odd shaped clamping projects like guitar, violin and many more unique shaped glue up jobs. The bits are available in straight and dovetail designs where the straight bit is used to precut the grooves and reduce the workload for the subsequent dovetail bit. Available in both 1/4" and 1/2" shanks.

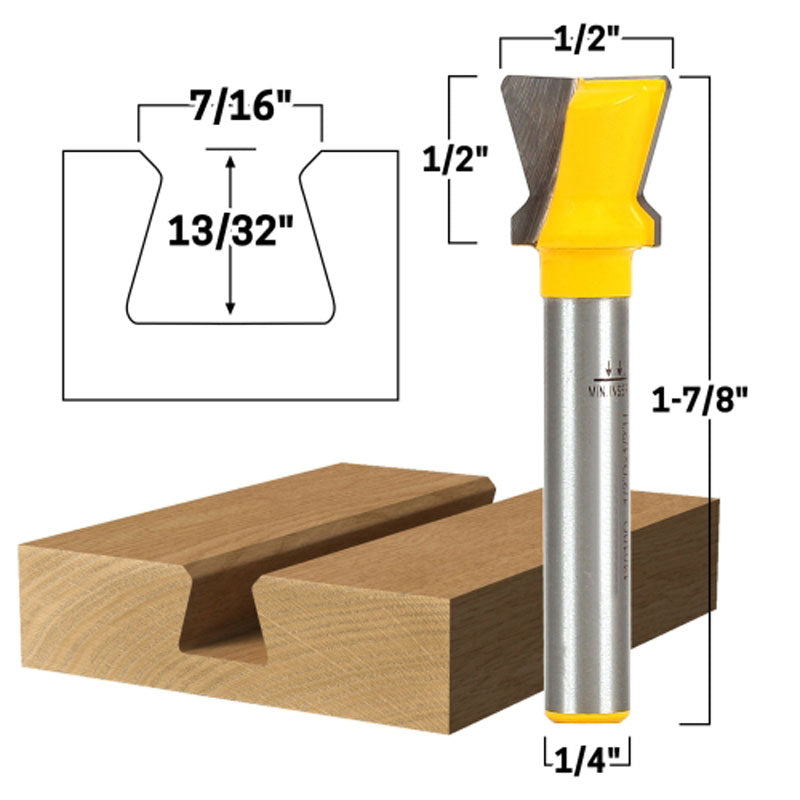

The Dovetail Clamp Jig Router Bit can be used to create dovetail slots in any wooden bench top or workspace surface and is compatible with the Micro Jig Clamp system and many other popular brands. 1/2" Cutting Diameter X 13/32" Height. 2 flute carbide cutters and 1/4" Shank.

Bit Specs
Material:Carbide Tipped
Overall Length:1-7/8"
Largest Diameter:1/2"
Degrees:15.5°
Number of Flutes:2
Number of Bits:1
Shank Size:1/4"
Cutting Diameter:1/2"
Cutting Length:1/2"
