Bottom Bearing Ultra Perfomance Compression Flush Trim 1/2" Shank Router Bit

$130.00 AUD

Sale Sold out

Shipping calculated at checkout.

Available in yellow and red. Colors will be shipped randomly based on stock availability.

Quantity

The Ultra-Performance trim bits feature a solid carbide sleeve welded to a hardened steel core. This results in a bit that performs like a solid carbide bit which is considerably less expensive. Upgrain routing is where this bit shines and with it's complex up-down or compression geometry this bit produces a finish that is unmatched by standard flush trim bits.

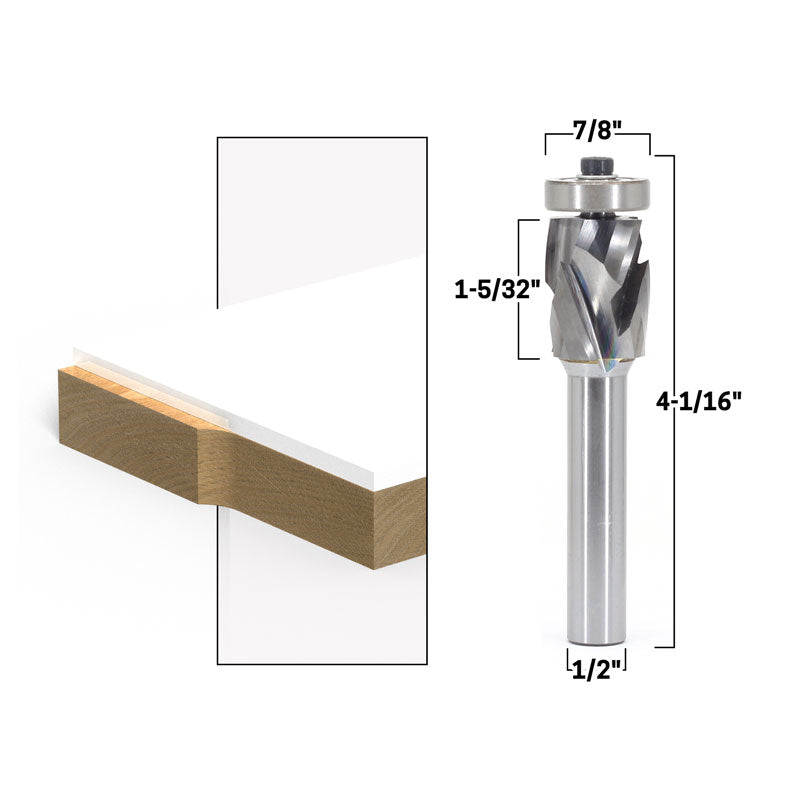

This Bottom Bearing Ultra-Perfomance Compression Flush Trim Router Bit has a 1-1/8" cutting height and a 7/8" diameter with an overall length of 4-1/16" and a 1/2" shank.

Bit Specs
Material:Carbide
Number of Bits:1
Shank Size:1/2"
Cut Direction:Compression
Cutting Length:1-1/8"
Overall Length:4-1/16"
Largest Diameter:7/8"
Number of Flutes:3

View full details

After using cheaper HSS bits, and full carbide bits from This, this one beats them all. I'm not sure how i managed without this thing now that I have it. I sent this bit through bloodwood and hickory, it looked back at me and laughed, then it yawned, then it sneezed. I assume due to the dust. Either way, dont bother with cheaper bits, get this one. You wont regret it.

Cuts very fast and cuts exactly to size, I use for cutting box joints. I have cut a lot of maple and red oak and it is still cutting strong.

This allowed me to joint some long boards that were too much for my smaller jointer to handle. You can't take a lot off otherwise the cut is too rough (going much beyond 1/16" at a time leaves a bumpy surface). Also VERY important to go in the right direction with this bit. For hand-held, this means left to right. If you go right to left the router comes flying off the board which could be dangerous.
