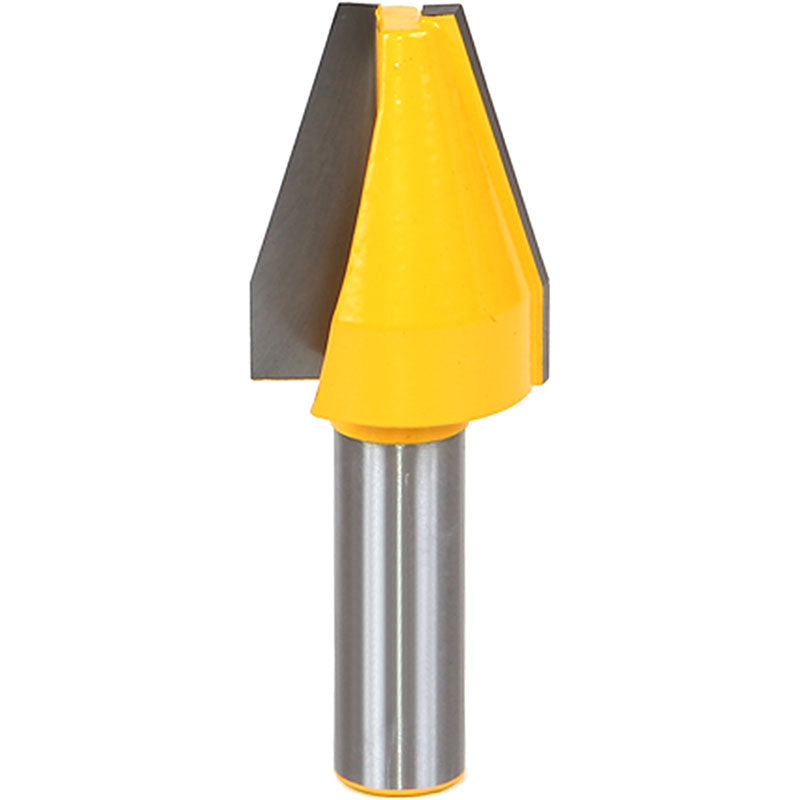

Bevel Vertical Raised Panel 1/2" Shank Router Bit

There's no need to buy a heavy-duty router to make your own doors. Because of their smaller diameter, vertical panel raising bits require less horsepower and can be run at higher speeds than their horizontal counterparts. A vertical bit takes a much smaller "bite" out of the stock so your router won't get bogged down in the middle of a cut. We offer vertical panel raising bits with 1/2" & 1/4” shanks. Choose the larger shank diameter if your router collet will accept it.

Create bevel raised panels for cabinet doors vertically with the vertical panel raiser Router bit. Two flute carbide cutters & 1/2" shank. Manufactured from C3 micro grain carbide, raised panel router bits create smooth, detailed cuts resulting in professional door panels.

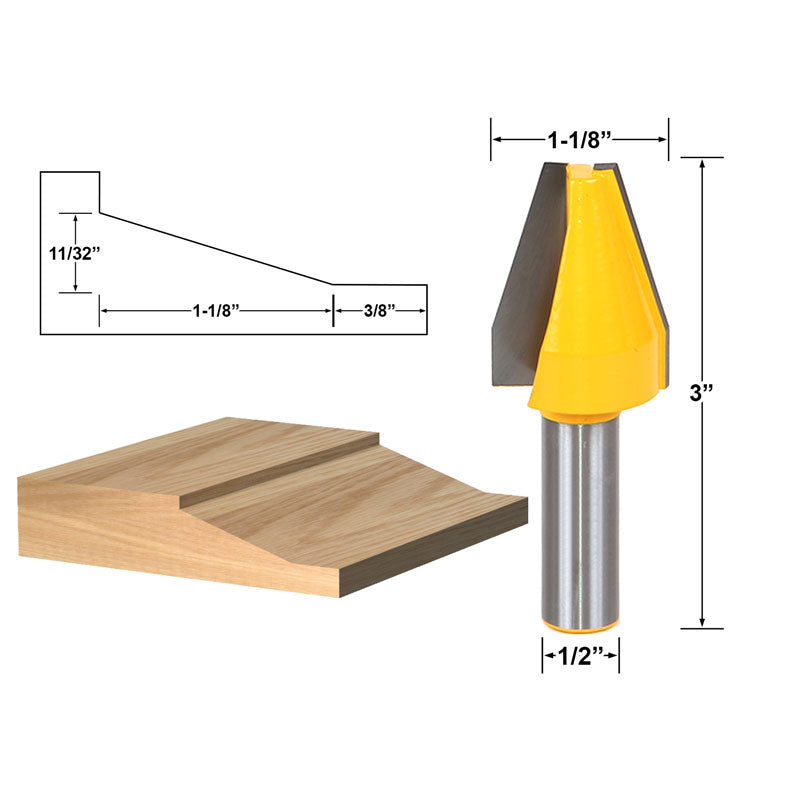

Bit Specs
Material:Carbide Tipped
Number of Bits:1
Shank Size:1/2"
Cutting Length:1-1/2"
Cutting Depth:5/16"
Overall Length:3"
Largest Diameter:1-1/8"
Degrees:1°
Number of Flutes:2
