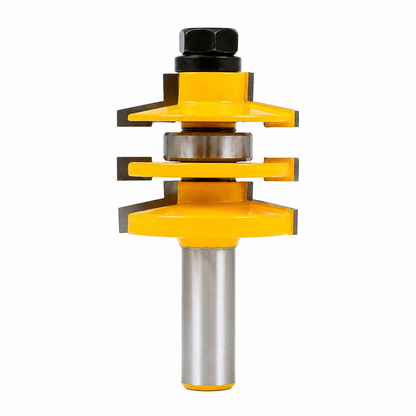

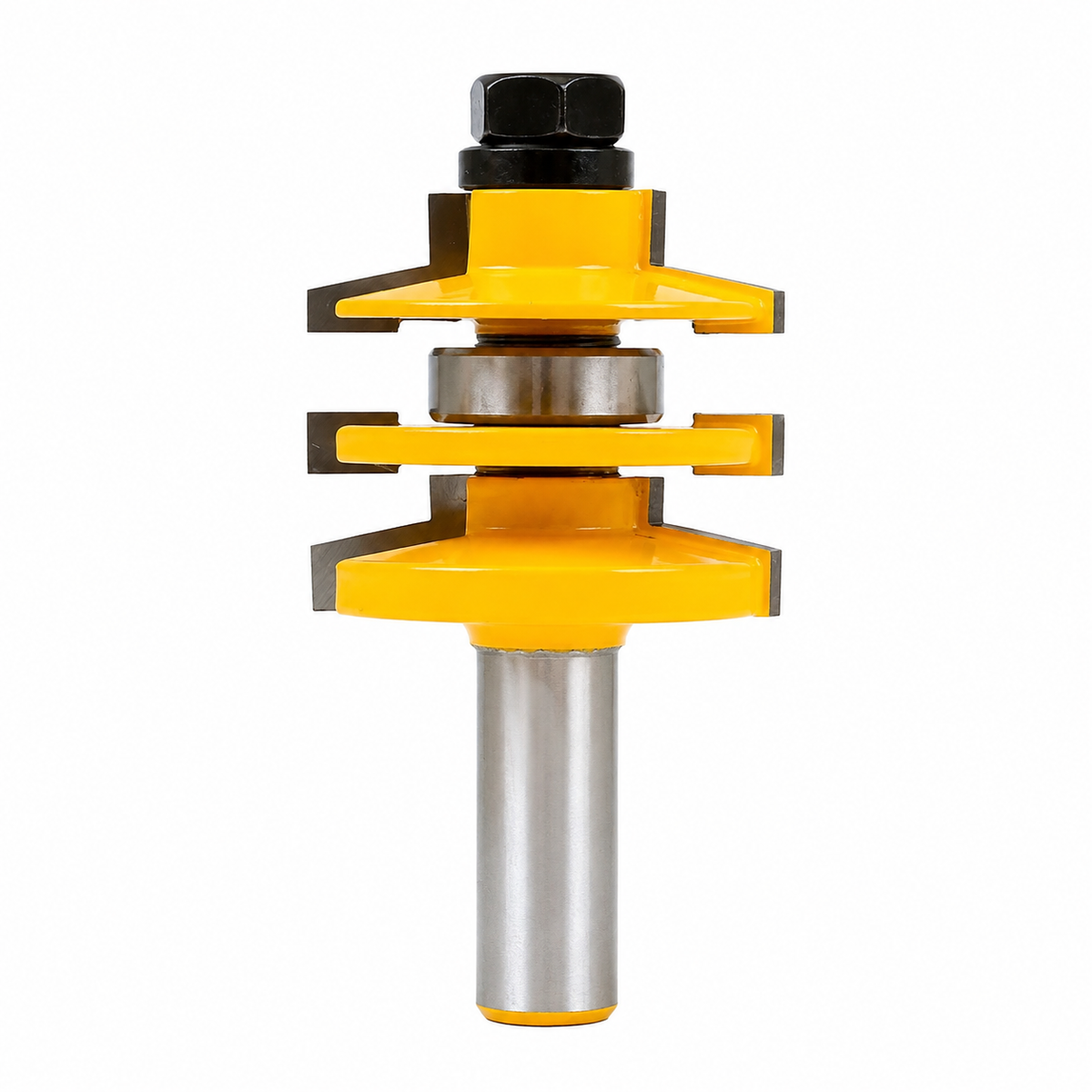

Bevel Stacked Rail and Stile 1/2" Shank Router Bit

$47.00 AUD

Sale Sold out

Shipping calculated at checkout.

Shank Size 1/2"

Available in yellow and red. Colors will be shipped randomly based on stock availability.

Quantity

The Stacked Rail and Stile Router Bit will cut both the profile and cope for rail and stile cabinet doors with a single bit. Simply, cut the profiles with the middle and lower blades and then lower the bit in your table to make the cope cut using the middle and upper blades. No need to switch or reassemble cutters. This bit comes equipped with a radial ball bearing for easy cutting depth setup.

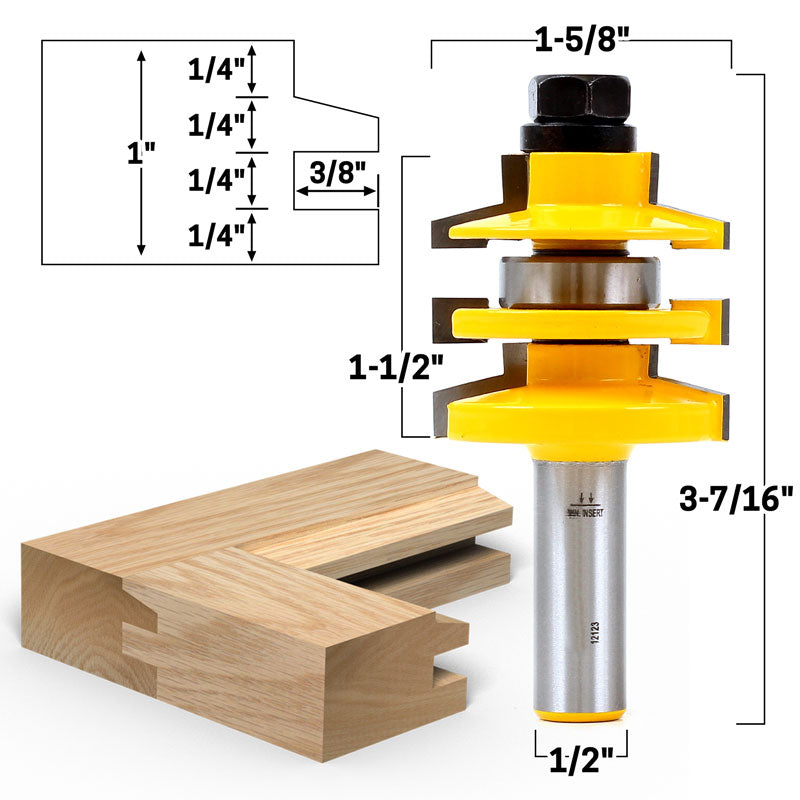

This bevel stacked rail and stile bit can cut stock up to 1" and will cut a depth of 3/8". The slots are 1/4" thick and the shank diameter is 1/2".

Bit Specs
Material:Carbide Tipped
Number of Bits:1
Shank Size:1/2"
Cutting Depth:3/8"
Minimum Stock Thickness:3/4"
Maximum Stock Thickness:1"
Overall Length:3-7/16"
Largest Diameter:1-5/8"
Number of Flutes:2
