Ball Nose Solid Carbide CNC Router Bit 1/8" X 1/2" X 1/4" X 2"

$24.00 AUD

Sale Sold out

Shipping calculated at checkout.

Available in yellow and red. Colors will be shipped randomly based on stock availability.

Quantity

Best used for: Smooth contour milling & carving.

Cutting Length: 1/2"
Overall Length: 2"
Shank Diameter: 1/4"
Cutting Diameter: 1/8"
Flutes: 2 The ball nose end mills' rounded tip is designed to reduce tool markings on work pieces of intricate tool paths and varying depths. Larger bits will produce the smoothest results while smaller bits will produce the finest detail. Pros: Produces smooth contours on intricate projects.
Cons: Not intended for plunging or dadoing. Choose a standard spiral bit for general milling, boring and finishing. For use in CNC milling and carving machines.

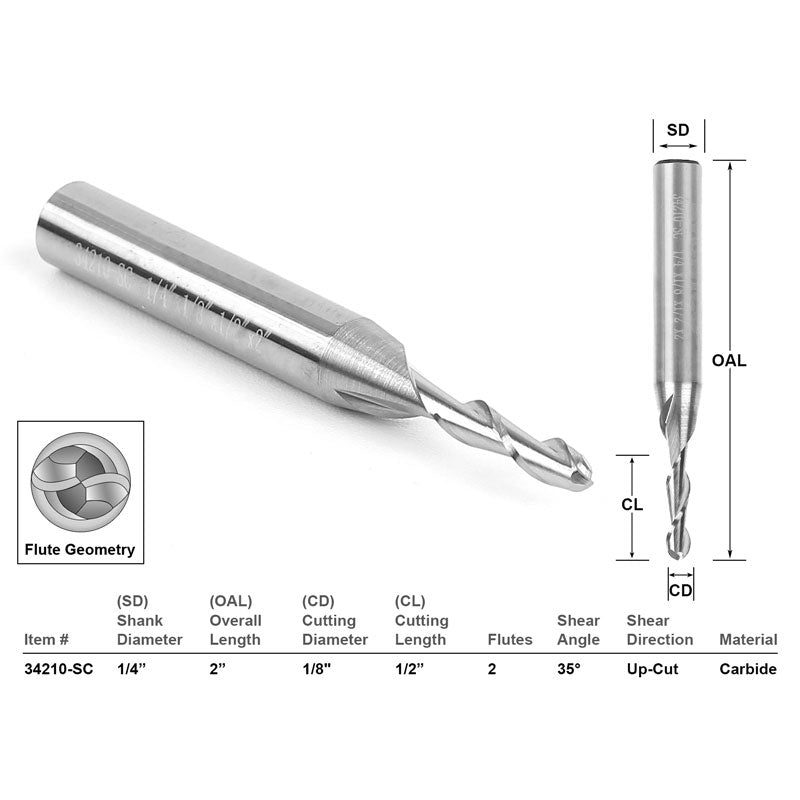

Bit Specs
Material:Solid Carbide
End Mill Type:Ball Nose
Shank Size:1/4"
Number of Bits:1
Cut Direction:Upcut
Cutting Diameter:1/8"
Flute Angle:35°
Overall Length:2"
Number of Flutes:2
Cutting Length:1/2"

View full details

They really do make a good job,Very clean cut...

This bit works well for shallow cuts with fine detail where you want to leave a small radius to clean up. Of course being so thin means you can not put a lot of load on it, so watch the feed rate.
Overall a good bit to have in the arsenal for specific cases, needless to say you won't be using it for hogging out large amounts of material.

I have several bits for my CNC router and like the other bits, this is a great bit that works reliably and quite well. Unlike some of the other budget bits I have bought, you can readily download the specs and add to your cnc software. I'm very new to the cnc router game and not having to do that relieves so much stress. I'm still figuring out how to do that, and I can just rely on the experts for that data with this one.
