5/8" Diameter Flush Trim Template 1/4" Shank Router Bit

$21.00 AUD

Sale Sold out

Shipping calculated at checkout.

Available in yellow and red. Colors will be shipped randomly based on stock availability.

Quantity

Flush trim template router bits work in your router table or handheld router. Secure your template to the top face of the work for handheld operations, or to the bottom face of the work when using a router table. It's helpful to have at least a couple of flush trim bits in different sizes in your router bit collection. 1/4" and 1/2" diameters make a good combination.

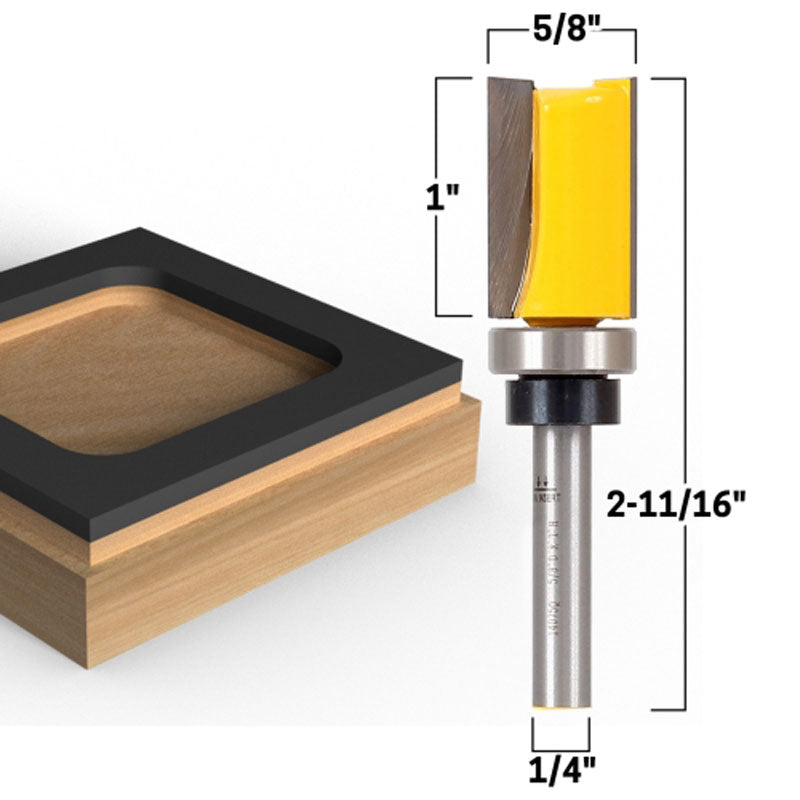

This template bit features a cutting height of 1" and a cutting diameter of 5/8". The overall length is 2-11/16" and the shank is 1/4" in diameter.

Bit Specs
Material:Carbide Tipped
Cutting Length:1"
Shank Size:1/4"
Cutting Diameter:5/8"
Number of Bits:1
Number of Flutes:2
Overall Length:2-11/16"
Largest Diameter:5/8"

View full details

Used it to flatten a slab of mango wood. It worked ok as long as you used at the right rpm and didn't take off more than your router can handle. I had a problem with the blade not cutting truly flat but I suspect that this may be something off on my router or sled. I have another flat planing bit so I will use that with the same router and sled and see what happens. It formed ridges of about 1/64" over the 1.5" width but these were easily sanded down on the initial sanding with 80 grit on and r/o sander. Otherwise the bit is sharp and stayed sharp for the whole job, 4'x8' slab, top and bottom. Will update to 5 star if it turns out to be my router.
