5/16" Bead 2 Bit 1/4" Shank Canoe Joint Router Bit Set

$42.00 AUD

Sale Sold out

Shipping calculated at checkout.

Available in yellow and red. Colors will be shipped randomly based on stock availability.

Quantity

A great way to make joints of variable angles from the same tool setup. This type of joint is called a canoe joint because of the flexibility needed for a variety of angles when constructing a canoe. Every slat on a canoe joins its neighboring slat at a slightly different angle, and this router bits set allows this without a different setup for each joint. Always cut the male side of the joint at full depth. The cutting depth of the female side will determine how much angle is achievable in the joint.

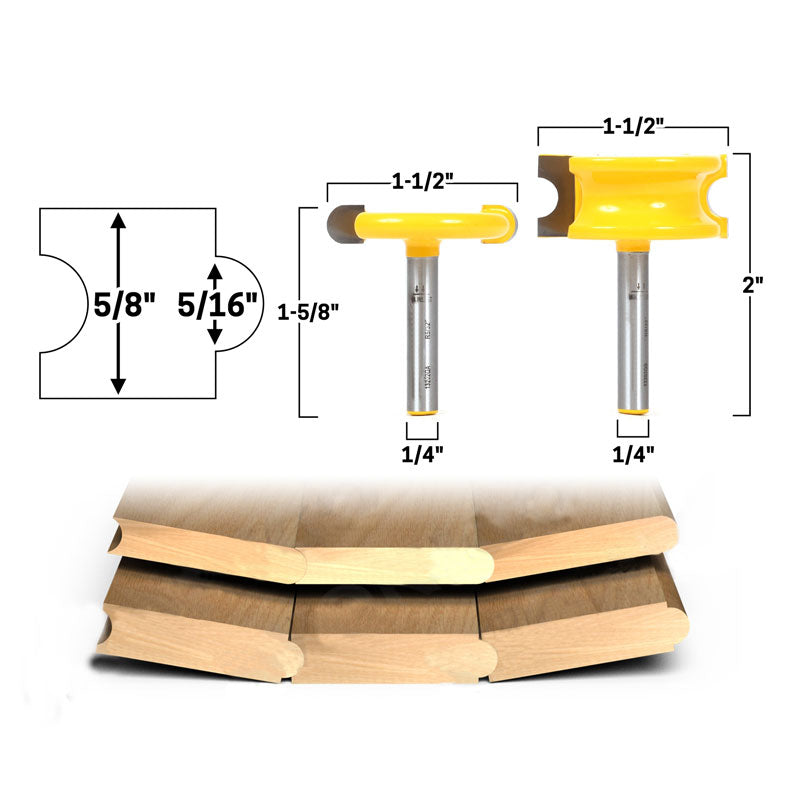

This set of canoe joint router bits will cut 5/16" bead - male and female joint components with a 5/32" cutting depth. 1/4" shanks.

Bit Specs
Material:Carbide Tipped
Number of Bits:2
Number of Flutes:2
Minimum Stock Thickness:5/16"
Maximum Stock Thickness:5/8"
Shank Size:1/4"
Cutting Length:5/8"
Cutting Depth:5/32"
Largest Diameter:1-1/2"
Radius:5/32"

View full details

Purchased this to route a drawer dovetail - super sturdy and sharp. Routed with no issue!

Worked fine. Carbide is thin, not sure how durable it will be.

If you're just getting started in woodworking and need a router bit set, then this is a great value. It has nearly every bit you can imagine at a very reasonable price. For the price of a single bit at some stores you can get the entire set.
