45 Degree Up to 1/2" Stock Lock Miter 1/2" Shank Router Bit

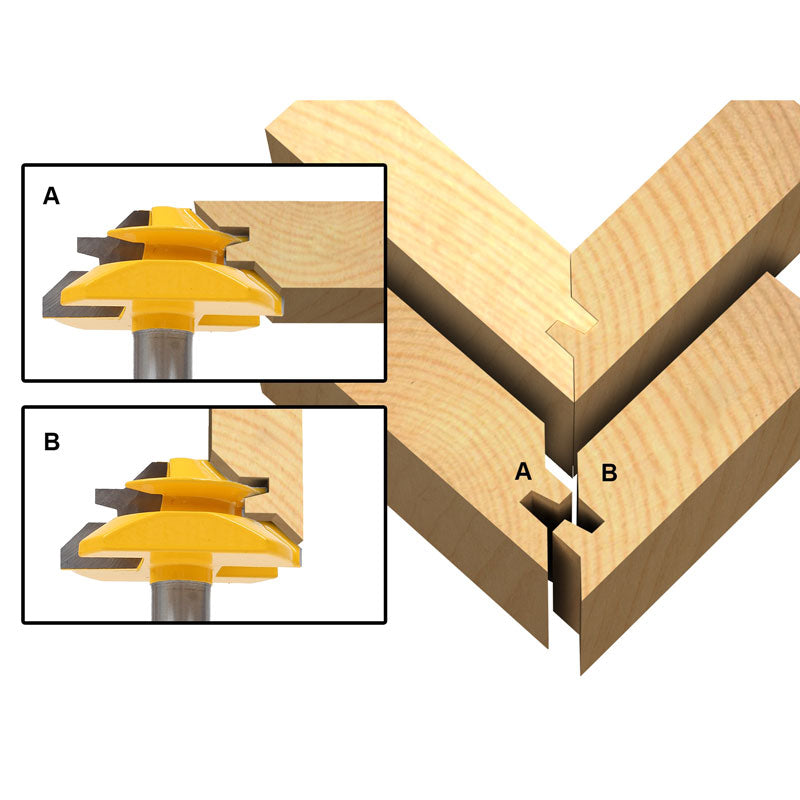

It can be little tricky at first but when positioned properly, the bit will cut both pieces of stock without having to adjust the bit. Align the center of the cutter with the center of the stock when the stock is in the horizontal position and in the vertical position. Then, cut one piece horizontally and the second one vertically and the joint should line up perfectly. Instructions are available from the manufacturer upon request. Note: Lock miter bits only work properly on solid wood. MDF and plywood are not recommended.

Use the reversible 4° lock miter glue joint Router bit to join boards at 9°. The interlocking 4° cuts will produce extremely strong joints without having to struggle to keep the boards in place during clamping. Additionally, it will provide extra gluing surface resulting in an extremely strong and durable joint. When positioned properly, the bit will cut both pieces of stock without having to adjust the bit. Simply set the center of the stock to the center of the bit. Then, cut one piece horizontally and the second one vertically. Ideal for use with 1/2" stock. Two flute carbide cutters & 1/2" shank.

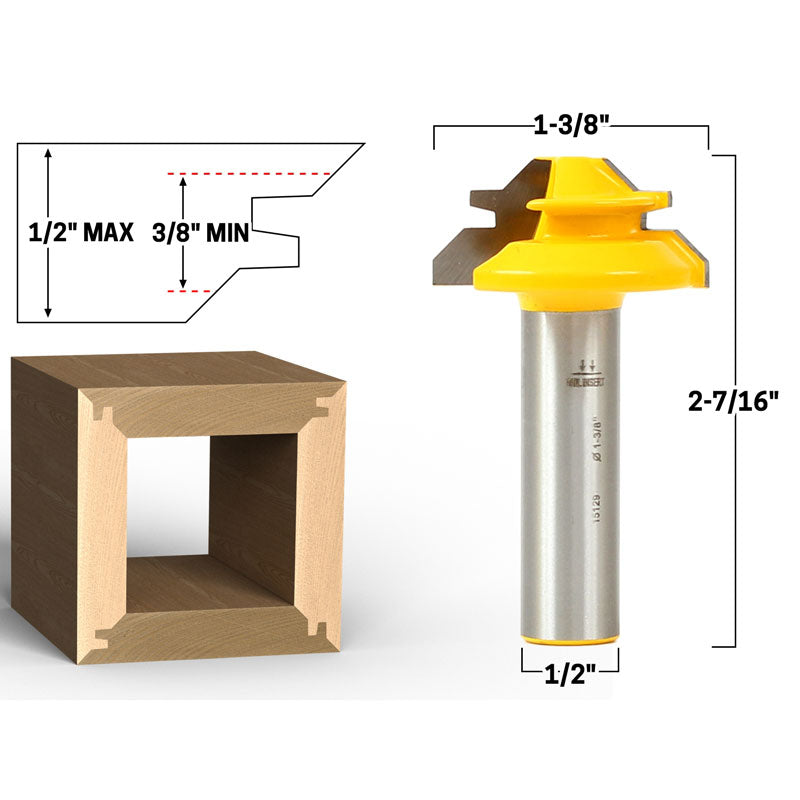

Bit Specs
Material:Carbide Tipped
Degrees:4°
Number of Flutes:2
Minimum Stock Thickness:3/8"
Maximum Stock Thickness:1/2"
Number of Bits:1
Shank Size:1/2"
Cutting Length:1/2"
Overall Length:2-5/8"
Largest Diameter:1-3/8"
