16mm T Slot 1/4" Shank Router Bit

$23.00 AUD

Sale Sold out

Shipping calculated at checkout.

Shank Size 1/4"

Available in yellow and red. Colors will be shipped randomly based on stock availability.

Quantity

T-slot router bits are great for creating T-channels for jig and clamp applications and keyholes for hanging projects. It is recommended that a straight groove, matching width to the upper part of the "T", be cut into the workpiece prior to routing the T-slot to reduce the stress on the bit. T-slot cuts produce a lot of wood chips with little room for them to escape and can cause the bit to get bogged down. Go easy on the feed and back off every couple of inches before resuming with the cut.

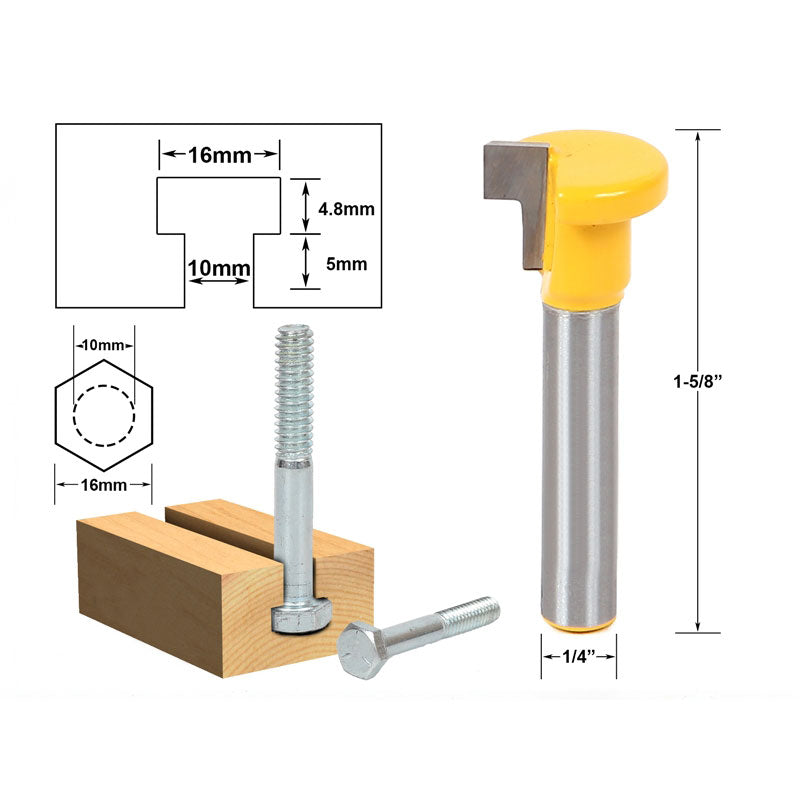

This t-slot Router bit cuts slots for 10mm bolts that have a 16mm wide x 4.8mm high (5/8" wide x 3/16" high) heads with up to 10mm (25/64") shaft diameter. The shank is 1/4" in diameter.

Bit Specs
Material:Carbide Tipped
Number of Bits:1
Shank Size:1/4"
Largest Diameter:5/8"
Number of Flutes:2
Cutting Diameter:16mm
Cutting Length:7/16"
Overall Length:1-11/16"
