1 PCS Glass Door Rail & Stile Reversible 1/2" Shank Router Bit

$37.00 AUD

Sale Sold out

Shipping calculated at checkout.

Available in yellow and red. Colors will be shipped randomly based on stock availability.

Quantity

The Glass Door Rail and Stile router bit will make glass doors with one reversible router bit. Use with up to 1" stock. Made with c3 micro grain carbide, router bits will endure multiple use providing a smooth and detailed finish every time. Glass doors enhance formal dining room furniture and curios and are an excellent way to dress up your kitchen. Two flute carbide cutters and 1/2" shank.

Features
Industrial Quality
Solid Hardened Steel Body
C3 Tungsten Carbide Cutters
Satisfaction Guaranteed
Anti-Kickback Design
Build-Up Resistant Coating

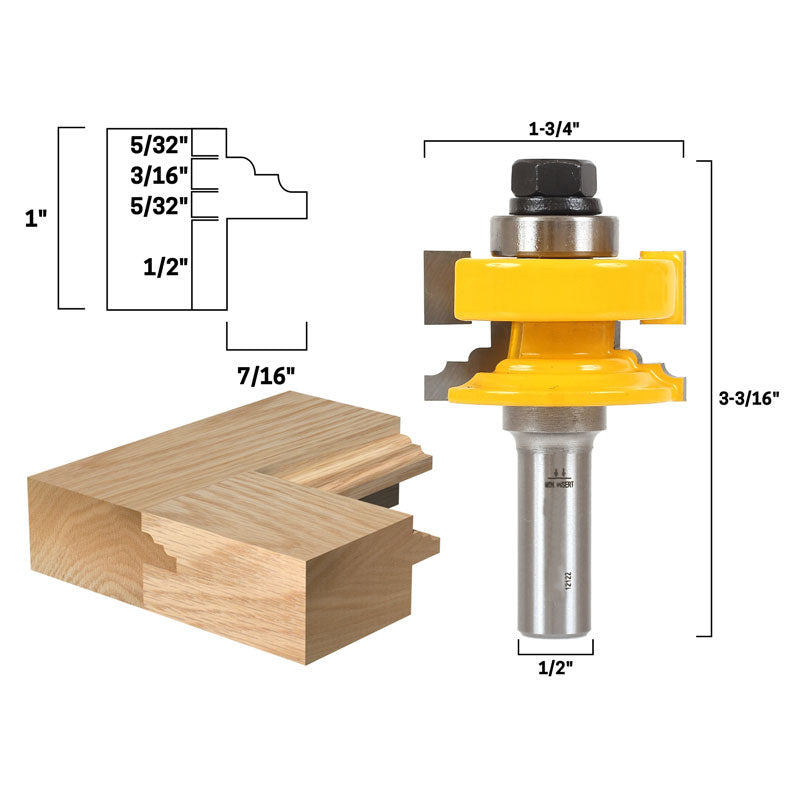

Bit Specs
Material:Carbide Tipped
Shank Size:1/2"
Number of Bits:1
Number of Flutes:2
Cutting Length:1"
Cutting Depth:7/16"
Overall Length:3-3/16"
Largest Diameter:1-3/4"
Minimum Stock Thickness:3/4"
Maximum Stock Thickness:1"

View full details

I used this to shape the top of a mantel clock I am making. I took only small cuts on each pass and raised the bit about 1/8 inch after each pass. It did a good job of shaping the top but left some burn marks on the walnut even though I tried to be careful. (It is the larger of the two shaped top pieces in the photo.) Walnut is easy to burn so it might not be the bit’s fault. For the price it is a good buy.
