1 3/4" Diameter Raised Panel 1/2" Shank Router Bit

Use a raised panel router bit to reduce the thickness of the center panel of rail and stile doors while at the same time adding a beautiful profile to the edge. Install one of these bits in your table mounted router and route your panels face down. Raised panel router bits have a large diameter and remove a lot of material, so make sure you have a router with enough horsepower to handle this kind of work. All standard raised panel bits are fitted with radial bearings to make adjustment of the router table fence easy. Do not use these bits in handheld routers. If you are using stock that is very thick, choose one of our raised panel router bits with a backcutter blade. These will remove excess stock from the back of the panel as well.

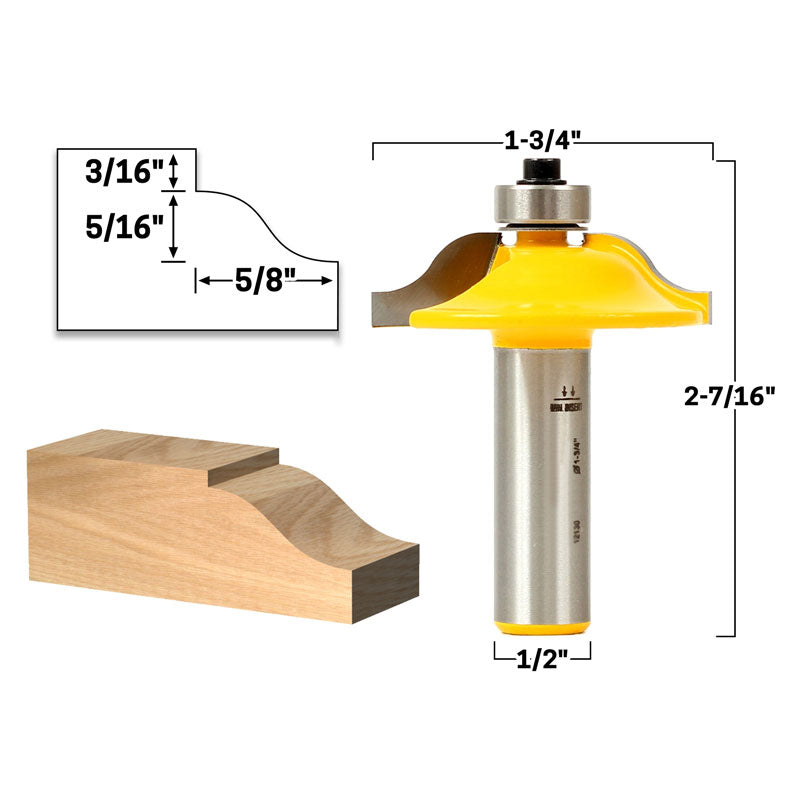

This 1-3/4" ogee panel raiser has a cutting depth of 5/8" and a total cutting height of 1/2" which includes a 3/16" fillet. This bit features thick carbide cutters and a 1/2" shank.

Bit Specs
Material:Carbide Tipped
Overall Length:2-7/16"
Largest Diameter:1-3/4"
Number of Flutes:2
Number of Bits:1
Shank Size:1/2"
Cutting Length:1/2"
Cutting Depth:5/8"
