1 1/2" Bevel Faux Panel CNC Cabinet Door Raised Panel 1/2" Shank Router Bit

$36.00 AUD

Sale Sold out

Shipping calculated at checkout.

Shank Size 1/2"

Available in yellow and red. Colors will be shipped randomly based on stock availability.

Quantity

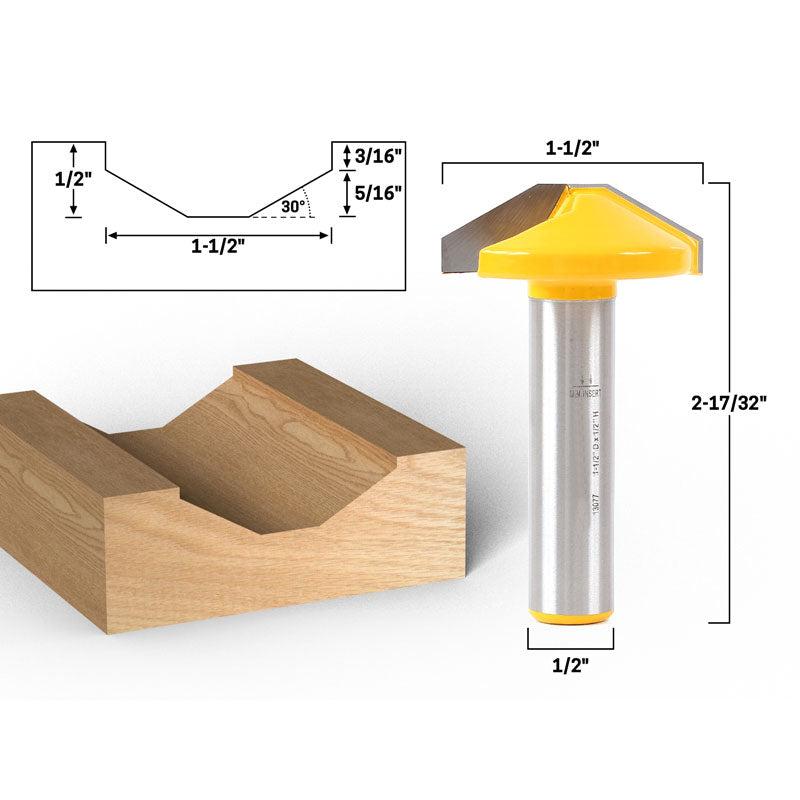

Cut faux raised door panel or HDF cabinet doors with bevel grooving bits. This bit can be used with a handheld router and template or in a CNC machine in production shops. This bit has a cutting diameter of 1-1/2" and cutting depth of 1/2". Overall height is 2-17/32" with a 1/2" shank. The blades are C3 micro-grain premium carbide.

This grooving bit features a bevel profile and a 1-1/2" cutting diameter which is perfect for the raised panel section of a CNC faux panel door profile. This bit has a total cutting depth of 1/2" and a 1/2" shank. The bevel design angle is 3°.

Bit Specs
Material:Carbide Tipped
Overall Length:2-17/32"
Largest Diameter:1-1/2"
Degrees:3°
Number of Flutes:2
Number of Bits:1
Shank Size:1/2"
Cutting Diameter:1-1/2"
Cutting Length:1/2"
Cutting Depth:1/2"
